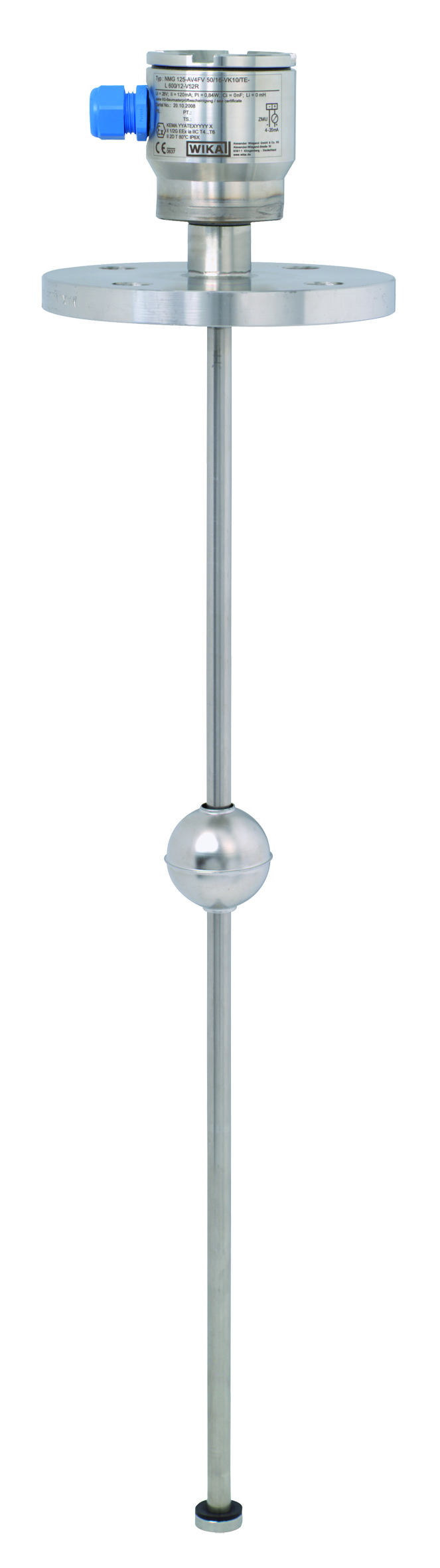

KSR Kuebler - Magnetic float level transmitter
KSR Kuebler Magnetic float level transmitter - for reading and controlling the level. Continuous signal or on/off signal.
Request product information:
The magnetic float level transmitter serves as a reading recorder for the electrical, continuous remote indication of the filling level. The operation of the measuring devices is based on the float principle. The magnet located inside the float triggers the reed contacts which uninterruptedly pick up the measuring voltage given at a resistance measuring chain.
Electrical connection: Connection cable/Terminal box/Connector plug/Terminal box with LED display
Process connection: Threaded connection/Flange/Tri-Clamp/Aseptic blind cone
Specific gravity: ≥ 400 kg/m3
Design pressure: -1 bar ... 150 bar
Design temperature: -50°C ... 250°C
Material quality: Stainless steel/Brass/Titanium/Alloy C/Polyamide/PVC/ Polypropylene/PVDF/Stainless steel E-CTFE coated/Stainless steel PFA coated
